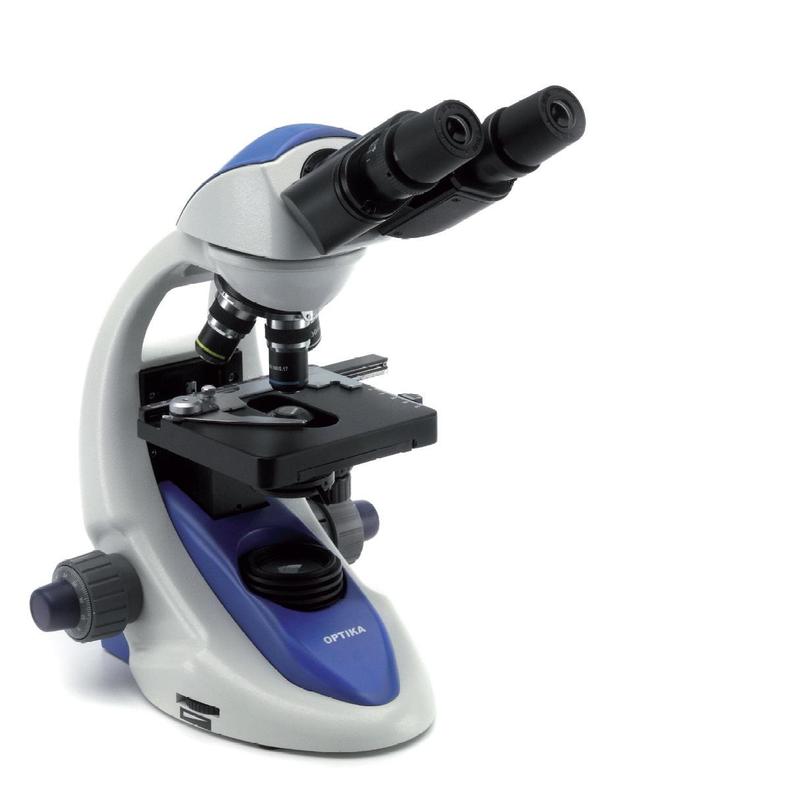

Binocular with achromatic objectives
TECHNICAL SPECIFICATIONS
Model: B-192
Head: Binocular, 360° rotating, 30° inclined with adjustable interpupillary distance and dioptric compensation
Eyepieces: Wide Field 10x/18mm
Revolving: nosepiece Quadruple, reversed
Objectives: DIN Achromatic 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
Stage: Double layer, 125x115 mm with X-Y 70x30mm moving range
Focusing: Coaxial coarse and fine focusing
Illuminator: X-LED2 system with adjustable intensity
Condenser: 1,25 N.A. Abbe type with adjustable height and iris diaphragm
Power supply: 100-240 Vac 50-60 Hz external power unit 6 Vdc output
